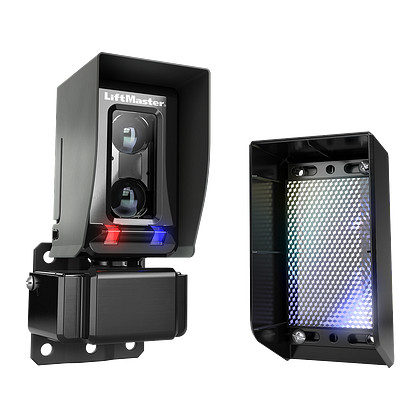

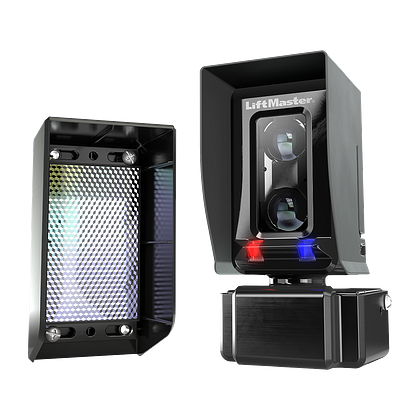

Lift Master Monitored Retro-Reflective Photo Eye

LMRRUL features integrated diagnostics with our 2018 UL® 325 Gate Operators.

Reliable
Versatile Solution for entrapment protection.
Long-Range sensing Distance of up to 50 ft. (LMRRUL)
Built-In Heater for dependable performance in most environments
Increased Beam Angle for simple, reliable alignment.
Versatile Gimble Bracket for fine alignment and adjustability
Warranty 2 years

Smart
Alignment Strength Indicator signals optimal beam alignment.
Multi-View Led Lights indicate sensor status, simplifying installation

Safe and Secure
Secure Mounting Hardware for versatile performance in harsh applications.
Hoods Included for durability and shield from elements.
NEMA 4X Rated for superior weather resistance.
UL Recognized: tested and evaluated by UL and meet UL 325 requirements

Quality Grade Design
Cover:
Stainless-steel sensor hood
Durable polycarbonate reflector hood
Powder-coated galvanized mounting brackets

Weight
LMRRUL: 3.3 lbs

Dimensions Photo Eye with Hood*
Height: 4.56"
Width: 2.45"
Depth: 2.76"

Dimensions Photo Eye without Hood
Height: 4.56"
Width: 2.35"
Depth: 1.97"

Dimensions Reflector with Hood
Height: 4.72"
Width: 2.01"
Depth: 2.61"

Temperature Specifications
-40°F (-40°C) to 149°F (65°C)

Diagnostics
LMRRUL
Solid Blue - Optimal alignment
Blinking Blue - LED blinks faster to indicate near alignment
Solid Red- misaligned or obstructed

Standard Features
Input Voltage and Current Draw Sensor: Black/Red Wires: 6.8V D, 20mA
Heater: Green/White Wires: 10-4V DC or 8-28V AC, 2 Watts Max., 170mA at 120V DC/A, 85mA at 24V DC/AC
Monitoring Technology: pulsed system
Interface: 4-Wire connection (2 for Eye; 2 for heater)
